POWERED BY URIM

URIM is our proprietary fabric specialised in the protection against electric arc. With a special structure and polyester-free fibre composition, URIM protects from the consequences of arc flash while providing a high level of comfort. It is also extremely effective in protecting against weld and grind spatter and meets the most rigorous industrial standards to provide safe working conditions for challenging working environments.

URIM CNTF + KOR Lining

WEIGHT: 350g/m2

ATPV Value: 13cal/cm2

URIM CNL2 + KOR Lining

WEIGHT: from 350g/m2

ATPV Value: 23cal/cm2

URIM 3PLY

WEIGHT: from 300g/m2

ATPV Value: 13cal/cm2

HIGH APTV VALUE

EN 61482-1-1

LIGHTWEIGHT

Weight from 300g/m2

HIGH VISIBILITY

High-visibility yellow and orange

Mannequin test ISO 13506

Proven results:

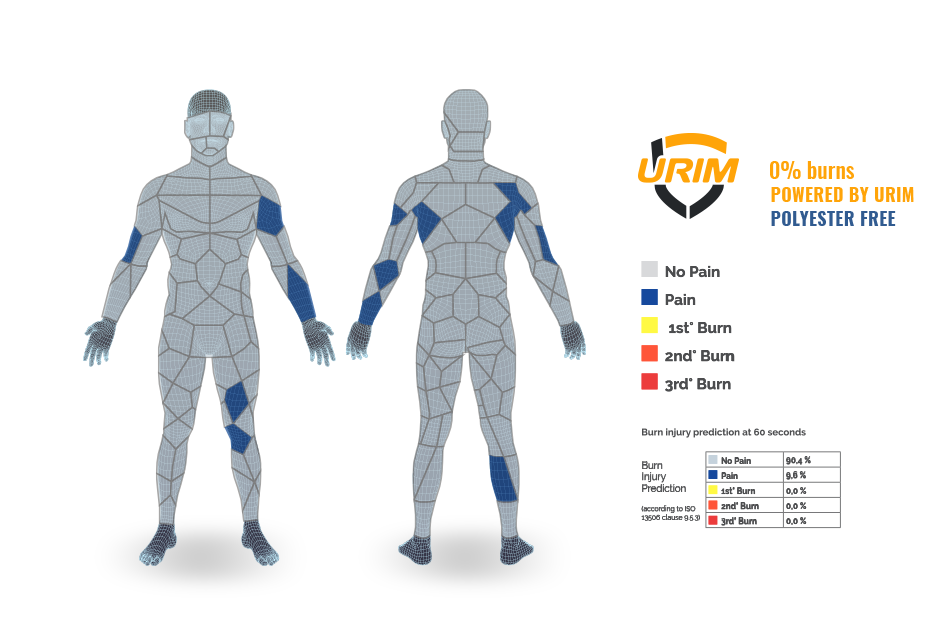

Urim arc flash fabric has been tested in a garment form (a combination of high visibility yellow and dark blue) on a thermal mannequin at the Swiss Federal Laboratories for Materials Science and Technology (EMPA) for compliance with ISO 13506;2008. The test was conducted with 100% of the mannequin being covered by the garments being tested.

Test Results: Arc flash suit made from URIM laminate with 120g lining has two parts – jacket and trousers and was tested in conjunction with a polo shirt with a 4 second flame exposure time. Results of burn injury prediction according to ISO 13506 are very good: 9,6% pain, 0,0% 1st burn, 0,0% 2nd burn and 0,0% 3rd burn.

Level of performance:

The performance levels are driven by the specific physical properties of the individual fibres selected.

  • The viscose FR provides comfort and smoothness to the fabric. This gives a smoothness to the movement and enables comfortable work in the garment
  • The Modacryl provides an inherent and permanent non-flammability
  • Antistatic fibres protect from explosion risk

URIM advantages:

This PES-FREE technology enhances thermal protection and minimizes personal injury.

  • Minimizes personal injury: no-melt, no-drip fabric
  • Durable fabric that does not form holes from molten droplets
  • Lightweight fabric provides high level of comfort and ease at work
  • 59% recycled cellulose fibres

Ideal for:

An ideal multifunctional garment especially for grinding and welding in:

  • Power management systems
  • Rail industry
  • Welding industry
  • Oil and gas industry

There is a Urim solution for every challenge:

  • 1/ A lightweight layer ideal for all applications where Arc class is needed: 1 URIM PLUS
  • 2/ A lightweight solution in Arc class 2 protection: URIM PLUS + KOR 2
  • 3/ A turnkey solution for challenging weather conditions: URIM CNL2 + lining KOR
  • 4/ A lightweight bad weather softshell: URIM 3PLY
Powered by urim

Excellent protection against heat, arc flash or iron spatter from welding or grinding. Below are the results of a test after 24 seconds of grinding:

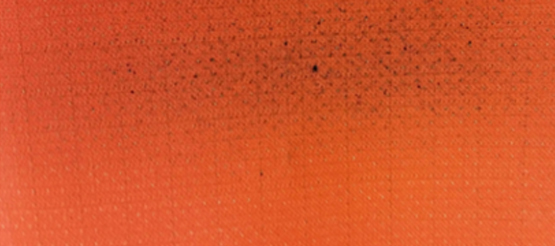

URIM GRINDING TEST

URIM is polyster free FR fabric and stay UNDAMAGED during welding
or grinding work

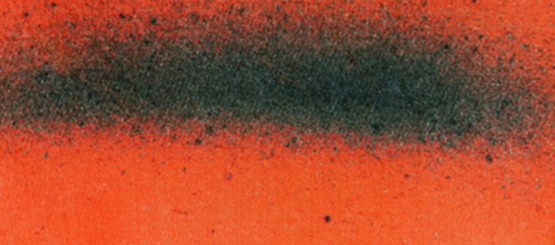

POLYESTER SURFACE GRINDING TEST

Generic FR fabric with a polyester surface is DAMAGED during welding or grinding, due to sparks melting the PES surface.
